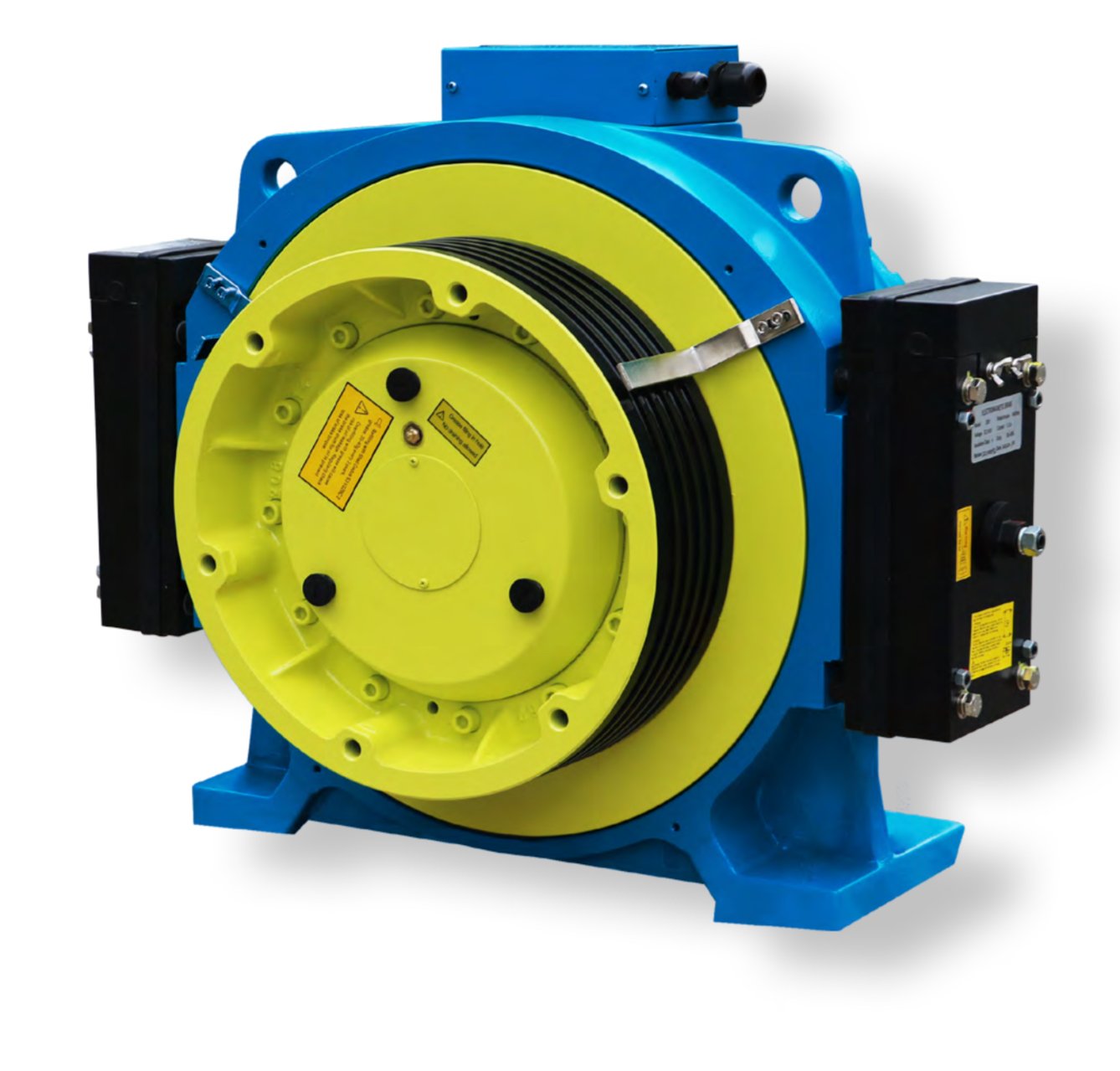

KDS WJC-630-150-E(320)

Capacidad: 630 kg

Velocidad: 1,5 m/s

Rated output: 6,4 kW

Rated current: 16,5

Rated speed: 179 rpm

Frecuencia: 47,7 Hz

Sheave diameter: 320 mm

Poles: 32 2p

Torque : 340 Nm

Ropes: 5-Φ8

Groove Dist. : 12 mm

Cut Angle: β=90°

Grove Angle:γ=30°

Rop-ing : 2-1

Shaft Load: 2000 kg

Handle wheel: Y

Remote Release: Y

Inertia:1,89 kg m^2

Weight: 240 kg
